Innovative Embedded & IoT Solutions

Aikri QRB5165: Aikri-51X-65LS-8

The Aikri 5165 System on Module (SoM) is based on Qualcomm® QRB5165 System on Chip (SOC). This SoM integrates Kryo 64-bit Octa-core 585 CPU, Adreno™ 650 GPU, Hexagon™ 698 HVX DSP, Spectra™ 480 camera ISP and Qualcomm’s next-gen AI-Engine to specifically power AI-enabled, low power robots and drones. The SoM, coupled with 2x2 802.11ax WiFi-6, BT 5.0, multiple CSI cameras, full featured USB-C and high-fidelity audio, provides excellent processing capabilities of multiple video streams up to 4K240 decode /4K120 encode. The Aikri 5165 SoM is well-suited for high computing robots and drones for enterprise, industrial and professional service applications including autonomous mobile robots (AMR), inventory robots, retail robots, cobots, pick-sort-place robots, cleaning robots, first-mile robots, last-mile delivery robots and delivery drones, prosumer and commercial drones, industrial & manufacturing robots, healthcare robots, defense robots, etc.

Learn More

Aikri QCS8250: Aikri-82X-50AS-8

The Aikri 8250 System on Module (SoM) is based on Qualcomm® QCS8250 System on Chip (SOC). This SoM integrates Kryo 64-bit Octa-core 585 CPU, Adreno™ 650 GPU, Hexagon™ 698 HVX DSP, Spectra™ 480 camera ISP and Qualcomm’s next-gen AI-Engine to maximize performance for compute intensive camera and AI applications on the edge. The SoM, coupled with 2x2 802.11ax WiFi-6, BT 5.0, multiple CSI cameras, full featured USB-C and high-fidelity audio, provides excellent processing capabilities of multiple video streams up to 4K240 decode/4K120 encode. The Aikri 8250 SoM is an ideal choice to kick-start development of various IoT applications including 4K camera, Medical imaging and other healthcare, Machine vision, AI and ML, Digital signage / HMI, Collaboration system, Robotics, Telematics etc.

Learn More

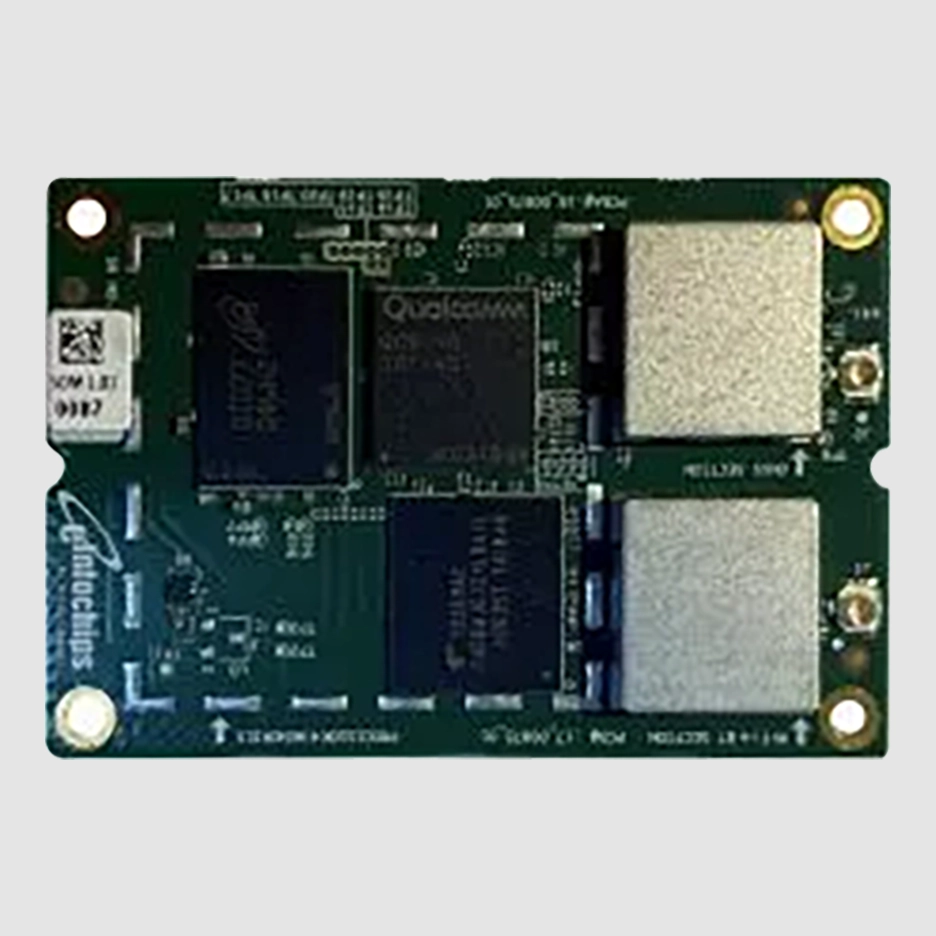

Aikri QCS610: Aikri-X10-6S-4

The Aikri 610 System on Module (SOM) is based on the Qualcomm® QCS610 processor. This SoM integrates Kryo 460 CPU, Adreno™ 612 GPU, Hexagon™ 685 DSP, AI Engine and the Spectra™ 230 camera ISP to enable advanced on-device camera processing and machine learning with very good thermal efficiency. The Aikri 610 SoM is coupled with features like Ethernet RGMII, calibrated 802.11nac Wi-Fi signal strength, Haptics, Bluetooth 5.0 and location. It is an ideal choice to kick-start development of various applications including Enterprise security cameras, IP cameras, Dash cam and body cam, Audio/video collaboration, Home/industrial automation, Tele-diagnostics, Smart display, Video conferencing, Industrial IoT etc.

Learn More

Aikri QCS410: Aikri-X10-4S-4

The Aikri 410 System on Module (SOM) is based on the Qualcomm® QCS410 processor. This SoM integrates Kryo 460 CPU, Adreno™ 608 GPU, and Hexagon™ DSP. Multi-core processing and advanced video codec offers high-resolution video capture at low power. The module offers tight system integration and optimization for superior performance and power efficiency. The Aikri 410 SoM has multiple connectivity options with integrated Qualcomm® Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.0. It is an ideal choice to kick-start development of various applications including Industrial IoT, Smart home security, IP cameras, Enterprise security cameras, Dash cam and Body cam, Smart display, Video conferencing etc.

*The standard lead-time is 26 weeks.

Learn More

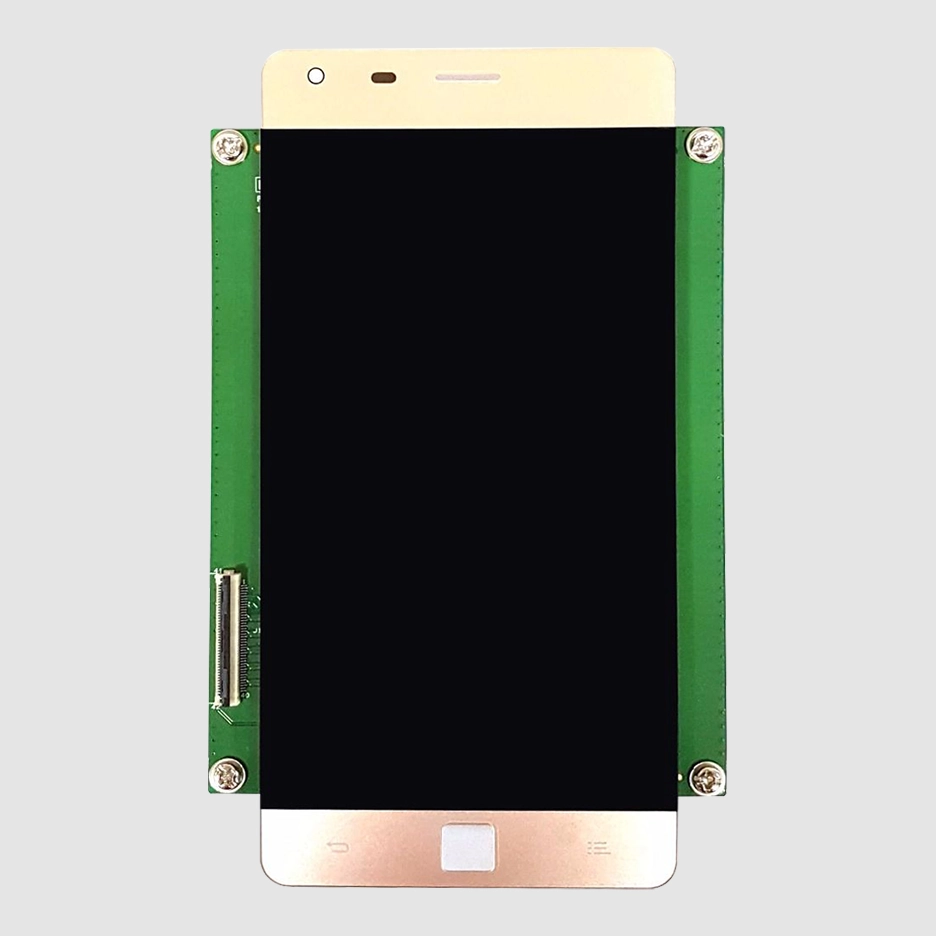

EIC-LCD-1080P

eInfochips EIC-LCD-1080P, is a 5.5” touch screen LCD display that can be used with both eInfochips 410 and eInfochips 820 development kits. This LCD supports 1080 x1920 (FHD) resolution, and operates at 5V voltage supply. It integrates with eInfochips 410/eInfochips 820 over MIPI DSI interface (4 lane) and uses I2C for touch interface configuration.

Interface Type: MIPI DSI
LCD Type: IPS TFT-LCD
Backlight Type: White LED(14*LED)
Display Resolution: 1080 x 1920 (Maximum)
Framerate supported: 60
Bit Per Pixel (BPP): 24
Pixel stream type: Packed pixel stream, RGB888 (24 bits per pixels)
Carrier to LCD Cable: 40 - pins FFC Cable
LCD-Active area – Outline dimensions (W x H): 68.04mm(W) x 120.96mm(H)
Pixel pitch - 0.063mm x 0.063mm
Panel Type : Video Mode
Source output voltage level GVDDP-GND: 2.85 ~ 6V, GVDDN-GND: -2.85 ~ -6V
System Interfaces
- MIPI DSI 4 data lane
- I2C (8-bits)
Display Modes: Power saving mode (standby / deep standby)
Operating Temperature: 70° C ± 2° C; -20° C ± 2° C
Ambient Temperature: 80° C ± 2° C; -30° C ± 2° C
Built–in OTP (4 Times) to store VCOM/GVDD calibration and ID1~ID3
Built–in OTP (1 Times) to store gamma, panel timing, and analog power setting
Built-in internal oscillator and hardware reset

Learn More

EIC-Q845-CAM

eInfochips also offers a camera module that is compatible with the eInfochips 845 hardware development kit. There are three camera sensors mounted on EIC_Q845_CAM with flash LEDs including IMX318 (22.5 Mega-Pixel) and IMX258 (13 Mega-Pixel) sensor.

Learn More

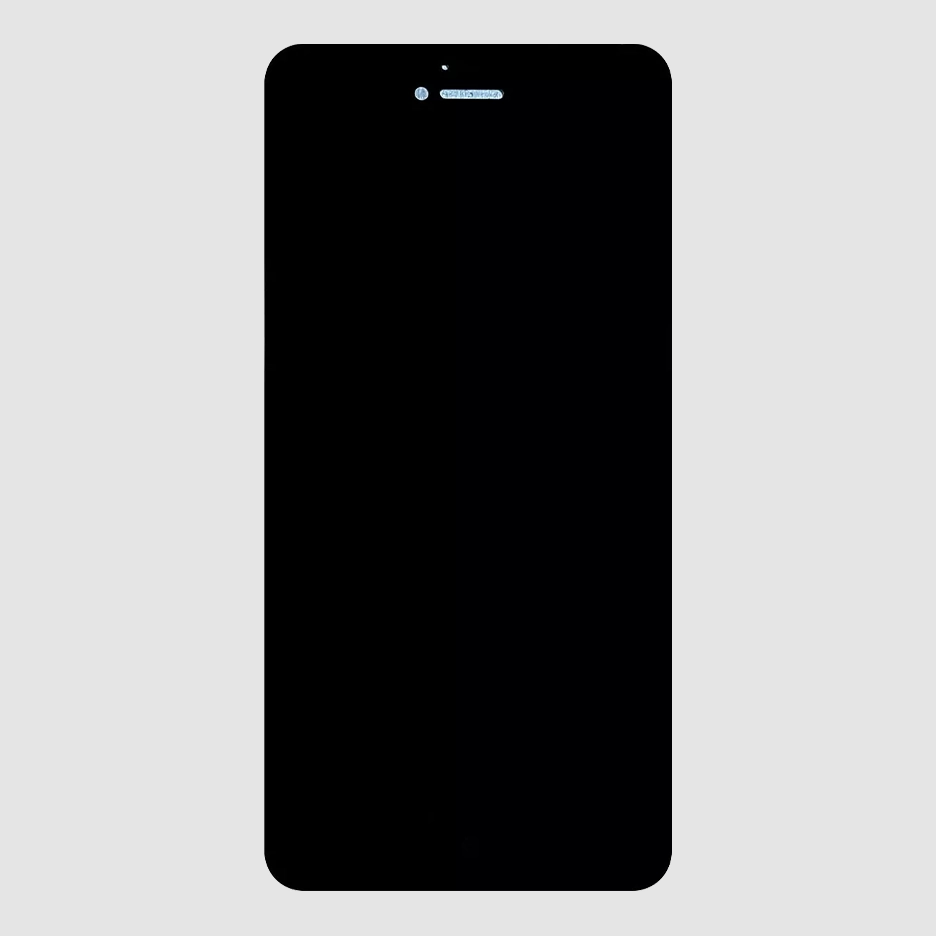

EIC-Q845-LCD

eInfochips also offers a LCD that is compatible with the eInfochips 845 hardware development kit. It is a 5.7 inch QHD LCD Touch panel that interfaces with the kit via 4 lane MPI DSI Interface. It supports 1440x2560 display resolution.

Learn More
