As the electric vehicle (EV) revolution continues to gain momentum worldwide, the role of SECC (Supply Equipment Communication Controller) has become crucial for ensuring secure communications and smooth charging operations. The SECC acts as a central communication module for integration with charging infrastructure via standards & protocols, secure wired & wireless connectivity, and high-voltage safety measures for reliable charging operations.

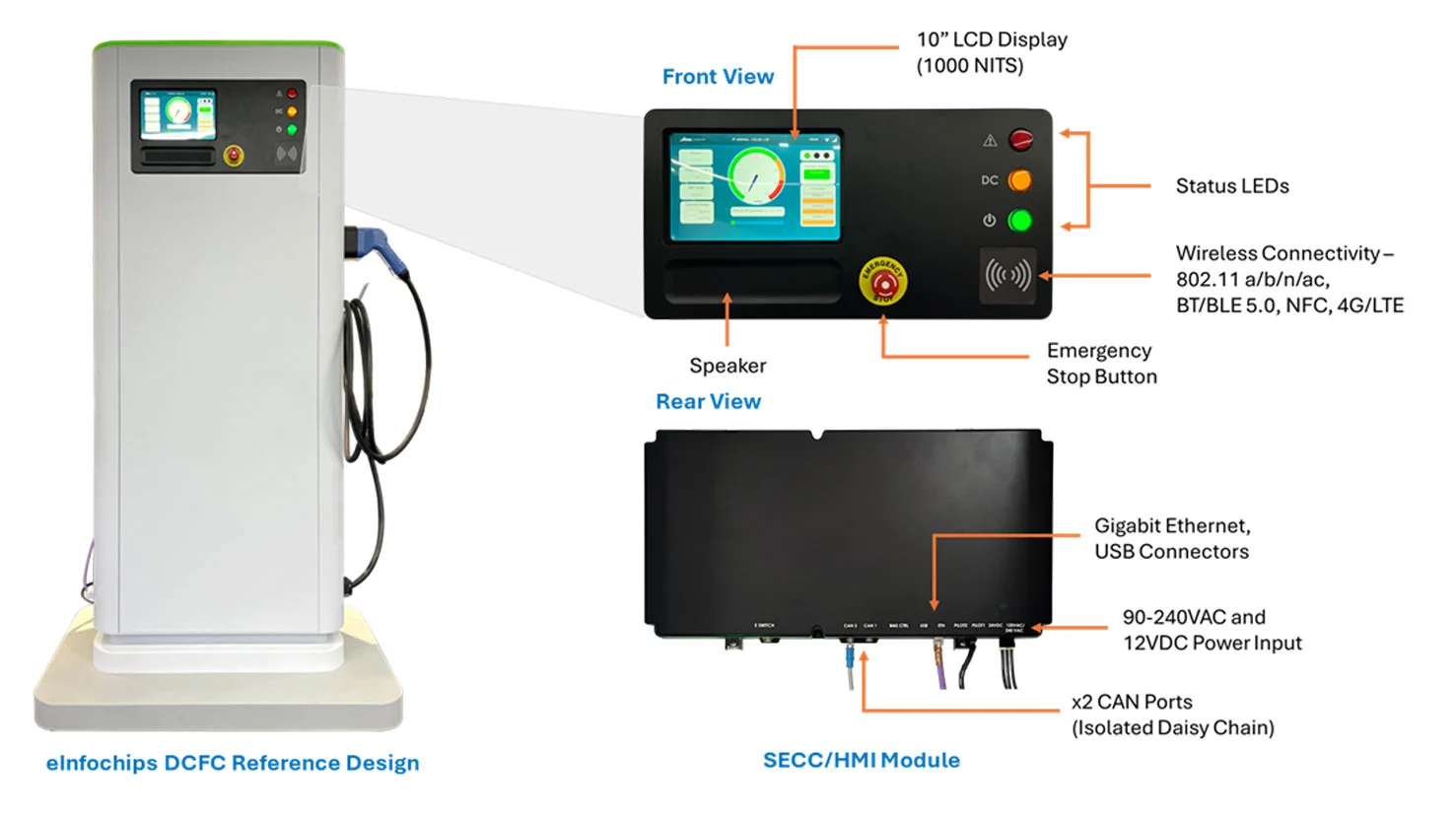

eInfochips SECC HMI Reference Design facilitates communication between EVs and charging infrastructure for safe & efficient charging operations. eInfochips SECC features a large 10” LCD display, Speaker & LED notifications, CAN/Ethernet/Wi-Fi connectivity, and NFC for secure authentication.
Specifications
|
Description
|
---|---|
Application Processor
|
NXP i.Mx93 SOM (EIC-i.MX93-210)
|
Charger and Vehicle communication
|
Power Line Communication (PLC) with Home Plug GreenPHY
|
LCD Display
|
TFT LCD display, 10” 1000nits
|
Charger and CSMS Communication
|
OCPP 1.6J
|
Charger and Vehicle Communication Compliance
|
ISO15118, IEC 61851-23, -24
|
Charging Interface
|
CCS1 / CCS2
|
Charger Network connectivity
|
Wi-Fi (802.11 a/b/n/ac), BT/BLE5, 4G/LTE, 1X Gigabit Ethernet RJ45 Port
|
NFC
|
Yes (ISO14443/ ISO15693)
|
Firmware over the Air Update (FOTA)
|
Yes
|
CAN Bus
|
2X CAN Ports (Isolated Daisy chain)
|
Front Panel Status LEDs
|
Mains available, Charging Status and System Error
|
Audio
|
Dual 3W Speakers
|
Emergency Stop
|
Yes
|
Input Supply
|
90-240VAC and 12VDC inputs
|
Operating Temperature*
|
-30°C to +60°C
|
Target Certification*
|
CE, FCC, UL, IEC, RoHS, REACH
|
Target Ingress Protection*
|
IP54 Indoor/Outdoor Usage
|
Relative Humidity
|
<95%, non-condensing
|
Dimensions (LxWxH)
|
520x270x130mm
|
Weight
|
2.5 kg
|
