EIC-i.MX93-210 Multimedia Kit

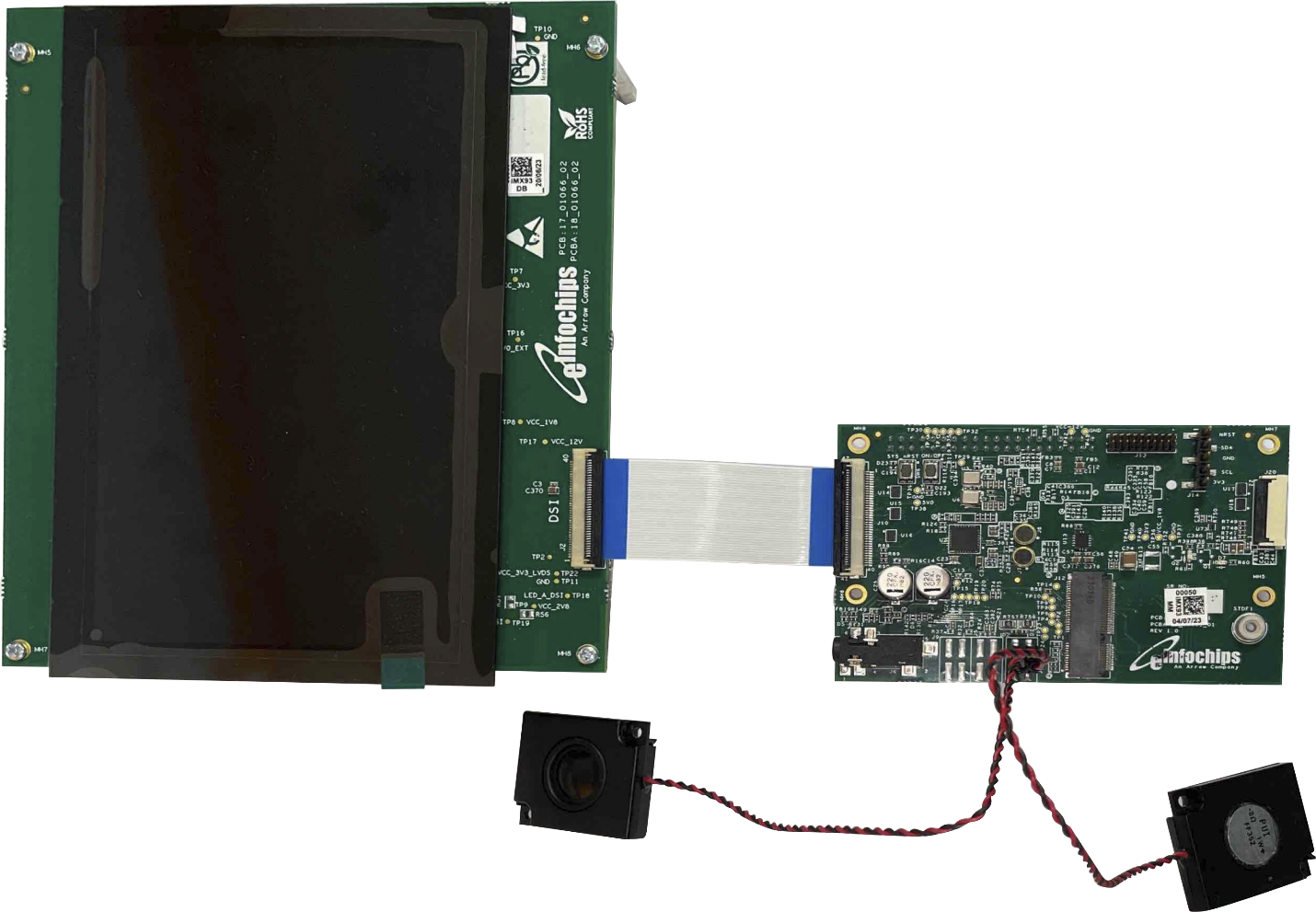

eInfochips offers Multimedia Kit which interfaces with eInfochips EIC-i.MX93-210 development kit for quick prototyping of multimedia solutions. This kit supports connectivity of Audio IN/OUT, 5.5” 1080 x1920p (FHD) resolution display with touch screen support, 1.0MP MIPI Camera (RPi-CAM-MIPI) developed by NXP & M.2 Key E type connector. It interfaces with EIC-i.MX93-210 development kit through High-Speed Connectors (HS1 & HS2) and Low-Speed Interface connector.

Multimedia Kit Features

Audio Interfaces
2x on board Analog Mic Input
8-bit RGB Parallel interface to MX93-210 development kit
2x 1W Speaker Out
1x 3.5mm Audio Jack
2x Digital PDM Mic input

Camera Interface
Provides connectivity of 1.0MP CSI camera module “RPI-CAM-MIPI” designed by NXP
22-pin/0.5mm FPC/FFC connector interface to connect with “RPI-CAM-MIPI”

2 Key-E Type connector support
Provide connectivity of M.2 Key E Type externa WLAN module
Supports multiple interfaces SDIO, PCM, UART, USB, I2C

Display Interface
Interface Type: 4 Lane MIPI DSI
LCD Type: IPS TFT (16.7M)/ Transmissive
Backlight Type: White LED (14*LED)
Display Resolution: 1080 x 1920 (Maximum)
Framerate supported: 60
Bit Per Pixel (BPP): 24
Pixel stream type: Packed pixel stream, RGB888 (24 bits per pixels)
LCD-Active area – Outline dimensions (W x H): 68.04mm(W) x 120.96mm(H)
Pixel pitch – 0.063mm x 0.063mm
System Interface Display Data: 4 Lane MIPI DSI Touch: I2C Control: GPIOs
Mezzanine to Display Board Cable: 40 pins FFC Cable
Supply Voltages Display: 2.8V for VCC, 1.8V for I/O Touch: 3.3V for VCC, 1.8V IO
Operating Temperature: -20°C ~50°C

Multimedia Kit Dimensions
85mm x 54mm
