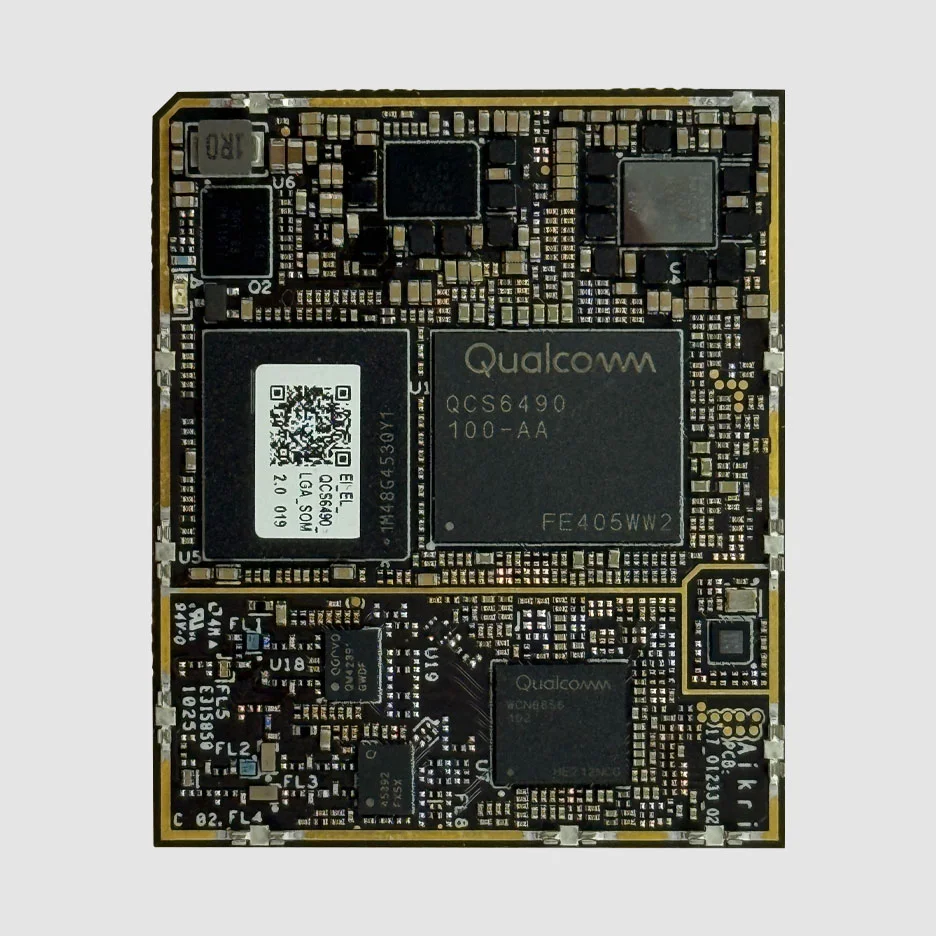

Aikri QCS6490: Aikri-64X-90LS-8-LGA
The Aikri 6490 LGA System on Module (SoM) is based on Qualcomm® QCS6490 System on Chip and delivers greater performance, better graphics, and broader connectivity options. This compact SoM integrates a 64-bit Octa-Core application processor Kryo 670 CPU, Adreno GPU 643, Hexagon DSP with HVX and Hexagon Tensor Accelerator, AI Engine that features a fused AI-accelerator architecture and Spectra ISP 570L image-processing engine to provide exceptional performance at low power. The SoM supports Wi-Fi 6E and Bluetooth 5.2 and provides excellent processing capabilities of multiple UltraHD video streams with enhanced security for robust connections.
The Aikri 6490 LGA SoM enables OEMs and engineers to evaluate performance of QCS6490 for their next-gen designs while minimizing design risk factors and reducing design cycle time with early time to market.
CPU
| CPU Name : Qualcomm® QCS6490 | |
CPU Type :
|
|
| CPU Cores :
Octa-core:
|
|
DSP :
|
|
Memory
| LPDDR5 : 8GB LPDDR5 |
| Flash : 128GB UFS 3.1 (uMCP) |
OS Support
| OS : Qualcomm Linux (QLI) |
Connectivity
| USB : 1x USB-C 3.1 | |
| PCIe : 1x PCIe Gen 3 1-lane (for WCN6856); 1x PCIe Gen 3 2-lane (for NVMe but can be used for other use-cases) | |
Sensor Interfaces :
|
|
Other Interfaces :
|
|
Networking
| Wi-Fi : Qualcomm® Wi-Fi via WCN6856 WLAN 802.11ax (WiFi 6E) |
| Bluetooth : Bluetooth 5.2 |
Mechanical Specifications

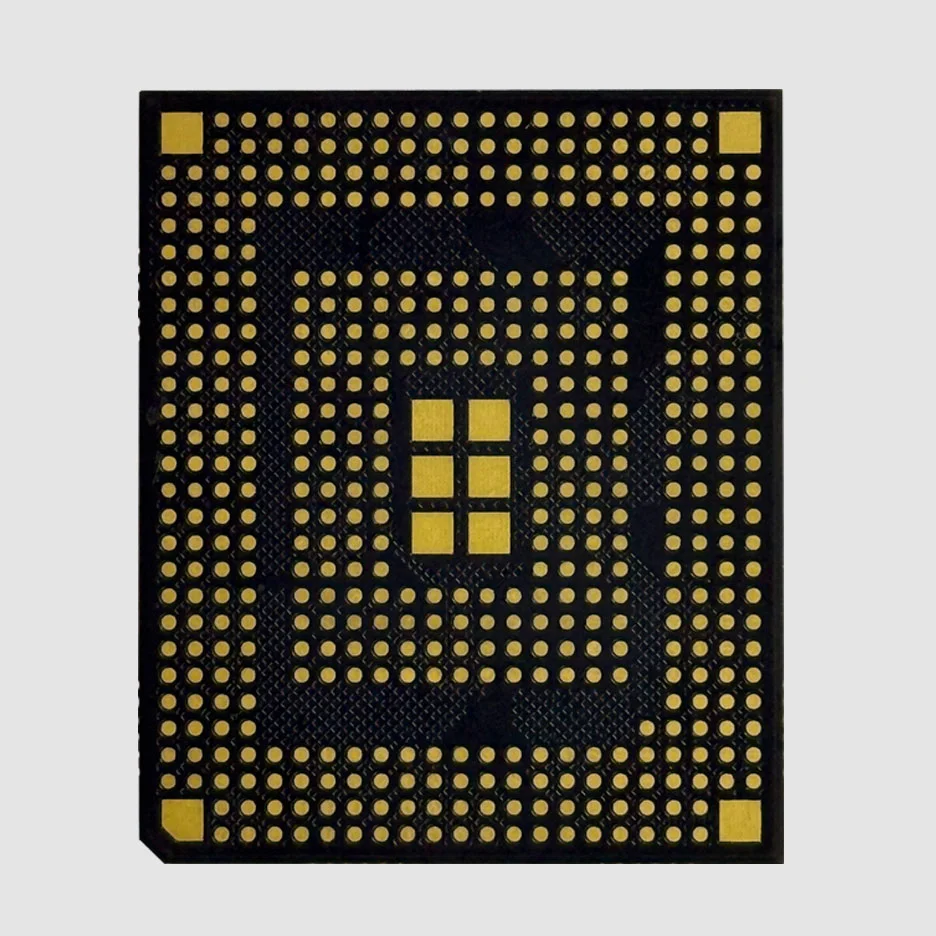

| Dimensions (L x W) : 44mm x 36.5mm x 3.2mm (542 LGA pins; 1.2mm pitch 0.7mm pad) |
Audio
| Audio Interfaces : PDM MIC, SLIMBUS, Sound-Wire |
Operating Environment
| Input voltage : 3.6V |
| Operating Temperature : -30 to +85°C |
Display
| Display Controller : Qualcomm ® Adreno™ 1075 DPU |
Display Interfaces :
|
Multimedia
| Graphic Controller : Qualcomm ® Adreno™ 643 GPU at 812 MHz with 64-bit addressing | |
| Video Encode : 4K30 for H.264/H.265 | |
| Video Decode : 4K60 for H.264/H.265/VP9 | |
Camera Interfaces :
|
|
CPU
| CPU Name : | Qualcomm® QCS6490 |
| CPU Type : | Qualcomm® Kyro™ 670, 64-bit applications processor |
| CPU Cores : | Octa-core:
|
| DSP : | Qualcomm® Hexagon™ DSP with Hexagon Vector eXtensions (HVX) and Hexagon tensor Accelerator |
System On Module
Carrier Board
Mezzanine Board
Memory
| LPDDR5 : | 8GB LPDDR5 |
| Flash : | 128GB UFS |
Multimedia
| Graphic Controller : | Qualcomm ® Adreno™ 643 GPU |
| Video Controller : | Qualcomm ® Adreno™ 633 VPU |
| Video Encode : | 4K30 for H.264/H.265 |
| Video Decode : | 4K60 for H.264/H.265/VP9 |
| Camera Interfaces : |
|
Display
| Display Controller : | Qualcomm ® Adreno™ 1075 DPU |
| Display Interfaces : |
|
Connectivity
| USB : | 1x USB 3.1 |
| PCIe : | 2x PCIe |
| Sensor Interfaces : | SPI, I2C, I3C, GPIO connections to sensor core DSP |
| Other Interfaces : |
|
Networking
| Wi-Fi : | Qualcomm® Wi-Fi via WCN6856 802.11a/b/g/n/ac/ax |
| Bluetooth : | Bluetooth 5.2/BLE |
Audio
| Audio Interfaces : | SWR, I2S, SLIMBUS |
OS Support
| OS : | Android 13.0 |
Mechanical Specifications
| Dimensions (L x W) : | 65mm x 40mm |
Operating Environment
| Input voltage : | 3.7V |
| Operating Temperature : | -25 to +65 °C |
Electrical Specifications
Kit Details
Documentation
eInfochips Aikri-64X-90AS-8 SoM Technical Datasheet Download
