Aikri QCS405: Aikri-40X-5LD-1

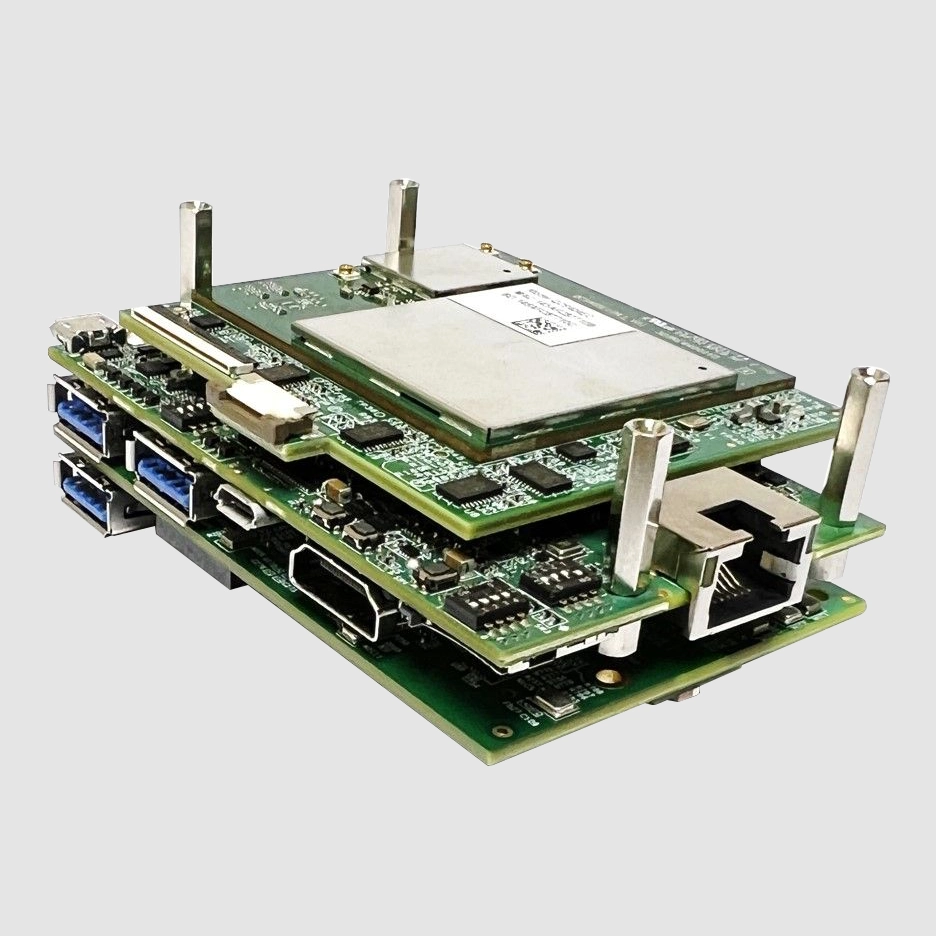

The Aikri 405 development kit is powered by the Qualcomm® QCS405-based Aikri SoM. This SoM integrates a 64-bit Quad-core Arm Cortex-A53-1.4 GHz CPU, Adreno™ 306 GPU, dual Hexagon™ QDSP6 v66, 2×2 802.11ac Wi-Fi and BT5.0 connectivity and supports a mic array, multi-speaker connection via Wi-Fi/BT, PCIe, HDMI 1.4a and multi-room audio streaming.The QCS405 is designed specifically for smart audio applications and supports features such as Multi-mic Noise/Echo Cancellation that isolates noisy environments from voice, simultaneous multi-keyword detection to aid voice services like Amazon Alexa and Google assistant. The Aikri 405 development kit helps kick-start and optimize your creation of complex, feature-rich smart audio solutions such as Smart-speakers, Soundbars, Home cinema, Smart assistants, Home Hubs etc. within a short turnaround time.
System On Module
| System-on-Module (SoM) : Aikri QCS405 SoM Aikri-40X-5LS-1 |
Mezzanine Board
Display Interfaces :
| |
| Connectivity : EFR32MG13 Based Module for Zigbee | |
Audio Interfaces :
| |
I/O Interfaces :
| |
Sensor Interfaces :
| |
Kit Details
Kit Details :
|
OS Support
| OS : Linux, Yocto Dunfell, Kernel 5.4 |
Carrier Board
Display Interfaces :
| |
Audio Interfaces :
| |
I/O Interfaces :
| |
| Sensor Interfaces : 1x IMU sensor | |
Others :
| |
Mechanical Specifications
Carrier Board :
|
Mezzanine Board :
|
Operating Environment
| Input voltage : 12V Nominal |
| Operating Temperature : -20 to +55°C |
Documentation
eInfochips Aikri QCS405 Dev Kit Technical Datasheet Download
