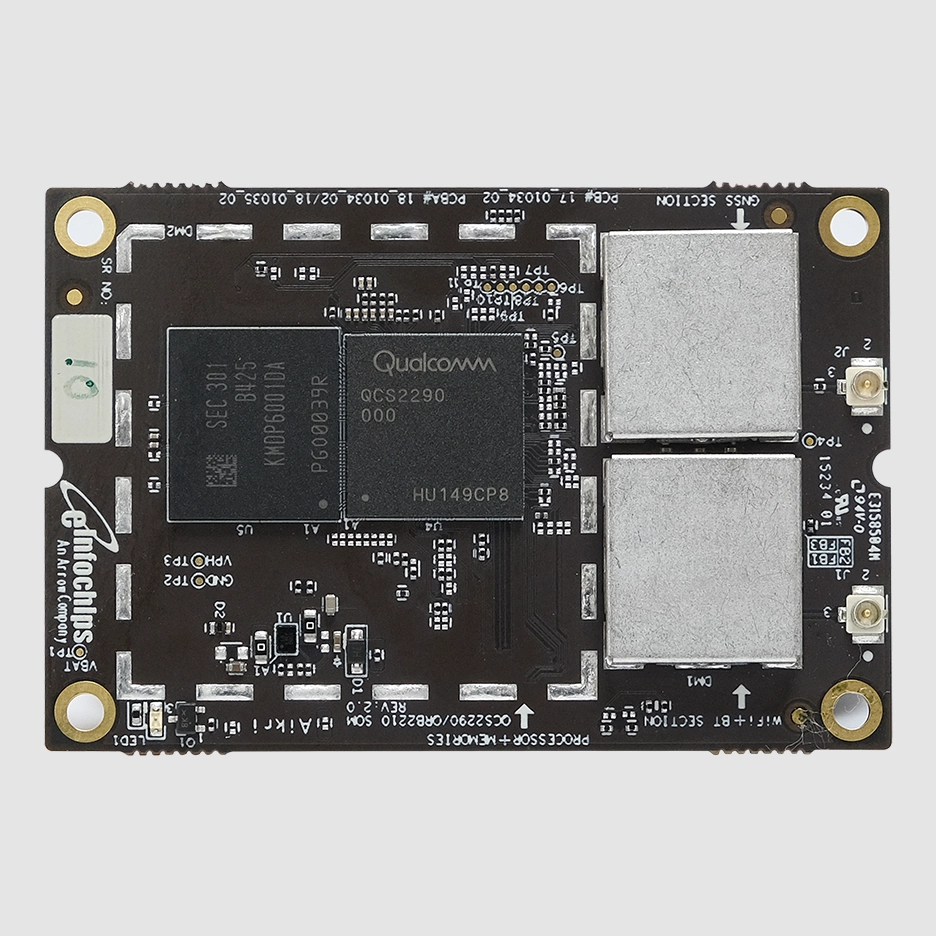

Aikri QCS2290: Aikri-22X-90AS-4

The Aikri 2290 System on Module (SOM) is based on the Qualcomm® QCS2290 processor. This SoM integrates a customized 64-bit Arm Cortex-A53 Quad-Core applications processor at 2.0 GHz, Adreno™ 702 GPU, and Spectra™ 340L image signal processor and delivers greater performance, improved graphics, and better-quality images at low power and cost. The Aikri 2290 SoM has onboard calibrated 802.11ac 1×1 Wi-Fi and Bluetooth 5.0 and offers enhanced security for secure connections. It is an ideal choice to kick-start development of various applications including Surveillance cameras, Robotics, Industrial handhelds, Telehealth and medical devices, Digital signage / HMI, Security panels etc.

CPU

CPU Name : Qualcomm® QCS2290
CPU Type : 64-bit Quad-core at 2.0 GHz with 512 KB L2 cache
DSP : Dedicated DSP shared between Snapdragon sensor core and low-power audio subsystem

Memory

LPDDR4 : 4GB LPDDR4x
Flash : 64GB eMMC 5.1

Multimedia

Graphic Controller :

  • Qualcomm® Adreno™ 702 GPU at 845 MHz with 64‑bit addressing
Video Encode : 1080p30 8-bit HEVC/H264
VideoDecode : 1080p30 8-bit HEVC/H264
Camera Interfaces :

  • Qualcomm Spectra 340L ISP
  • 2 x 4-lane CSIs (4/4 or 4/2/1 configuration)
  • D-PHY 2.5Gbps/lane

Display

DSI :

  • 1 x 4-lane MIPI-DSI,
  • D-PHY 1.2 at 1.5 Gbps per lane, HD+ (720 × 1680 at 60Hz)

OS Support

OS : Android 12, Kernel 4.19

Networking

Wi-Fi and Bluetooth :

  • WCN3950: WLAN 1 × 1 802.11a/b/g/n/ac and Bluetooth 5.0

Audio

Audio :

  • PM4125 PMIC codec
  • Interface support – Soundwire, I2S, SLIMbus to WCN3950 BT

Mechanical Specifications

Dimensions (W x L) :

  • 58 mm x 39 mm with 4x 90-pin board to board connectors

Operating Environment

Input voltage : Input Voltage: 3.6V Nominal
Operating Temperature : -30 to +85° C

Connectivity

USB : 1 x USB 3.1
GPIO : GPIO connections to sensor core DSP
Other Interfaces :

  • SDIO
  • I2S
  • UART
  • I2C
  • I3C
  • SPI

CPU



CPU Name :                Qualcomm® QCS2290
CPU Type : 64-bit Quad-core at 2.0 GHz with 512 KB L2 cache
DSP : Dedicated DSP shared between Snapdragon sensor core and low-power audio subsystem

System On Module

Carrier Board

Mezzanine Board

Memory

LPDDR4 : 4GB LPDDR4x

Flash : 64GB eMMC 5.1





Multimedia

Graphic Controller : Qualcomm® Adreno™ 702 GPU at 845 MHz with 64‑bit addressing

Video Encode : 1080p30 8-bit HEVC/H264

Video Decode : 1080p30 8-bit HEVC/H264

Camera Interfaces :

Qualcomm Spectra 340L ISP

2 x 4-lane CSIs (4/4 or 4/2/1 configuration)

D-PHY 2.5Gbps/lane

Display

DSI :

1 x 4-lane MIPI-DSI,

D-PHY 1.2 at 1.5 Gbps per lane, HD+ (720 × 1680 at 60Hz)

Connectivity

USB : 1 x USB 3.1

GPIO : GPIO connections to sensor core DSP

Other Interfaces :

SDIO

I2S

UART

I2C

I3C

SPI

Networking

Wi-Fi and Bluetooth : WCN3950: WLAN 1 × 1 802.11a/b/g/n/ac and Bluetooth 5.0

Audio

Audio :

PM4125 PMIC codec

Interface support – Soundwire, I2S, SLIMbus to WCN3950 BT

OS Support

OS : Android 12, Kernel 4.19

Mechanical Specifications

Dimensions (W x L) : 58 mm x 39 mm with 4x 90-pin board to board connectors

Operating Environment

Input voltage : Input Voltage: 3.6V Nominal

Operating Temperature : -30 to +85° C

Electrical Specifications

Kit Details

Documentation

eInfochips Aikri QCS2290 SoM Technical Datasheet Download

Note :* This is preliminary information and subject to change without notice
