eInfochips 865: EIC-Q865-210
CPU
| CPU Name : Qualcomm® Kryo™ 585 CPU |
| CPU Type : Qualcomm® Kyro™ 670, 64-bit applications processor |
| CPU Cores : 8 |
| CPU Clock (Max) : 2.84 GHz |
Memory
| LPDDR4 : 6GB LPDDR5 PoP memory |
| UFS : 128GB UFS 3.0 |
Multimedia
| 2D/3D Graphics Acceleration : Qualcomm® Adreno™ 650 GPU |
Video Encode :
|
Video Decode :
|
Camera Interfaces :
|
Connectivity
| SD : 1x microSD/UFS 2.1 Card Socket | |
| USB : 2x USB 3.0 Type-A host via on-board hub | |
| UART : 1x USB micro-B debug UART | |
| PCI-E : 1x PCIe v3 2-lane to M.2 socket | |
| JTAG : 1x JTAG | |
| GPIO : Low speed GPIO expansion header |
Networking
Wi-Fi :
|
| Bluetooth : Bluetooth 5.1 + HS (backward compatible) |
Audio
Audio :
|
OS Support
| Android : 10.0 |
Mechanical Specifications
| Carrier Board Dimensions : 100mm x 85mm |
Electrical Specifications
Supply voltage :
|
| Digital I/O voltage : 1.8 V |
Display
DSI :
|
CPU
| CPU Name : | Qualcomm® Kryo™ 585 CPU |
| CPU Type : | Qualcomm® Kyro™ 670, 64-bit applications processor |
| CPU Cores : | 8 |
| CPU Clock (Max) : | 2.84 GHz |
System On Module

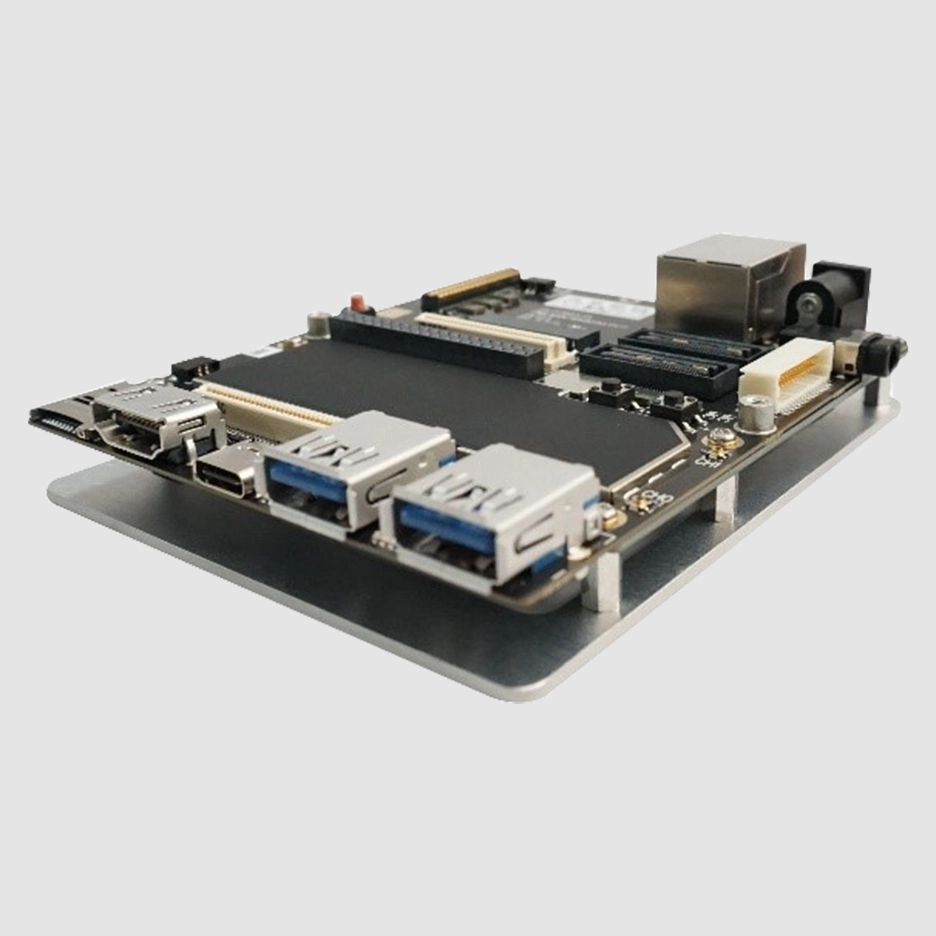

Carrier Board
Mezzanine Board
Memory
LPDDR4 : 6GB LPDDR5 PoP memory
UFS : 128GB UFS 3.0
Multimedia
2D/3D Graphics Acceleration : Qualcomm® Adreno™ 650 GPU
Video Encode :
- Video encode up to 4K120 or 8K30
- Concurrent 4K60 decode and 4K30 encode for wireless display
Video Decode : Video decode up to 4K240 or 8K60
Camera Interfaces :
- 4x 4-Lane MIPI CSI camera ports with separate I2C control busses on 160-pin expansion header for optional camera board
- Support for 3D Camera Configuration
- Additional 2x 4-Lane MIPI CSI camera ports available on high speed expansion header
Display
DSI :
- 2x 4-Lane MIPI DSI DPHY or 2x 3-Trio MIPI DSI CPHY via 2x 60-pin High Speed Display Connector

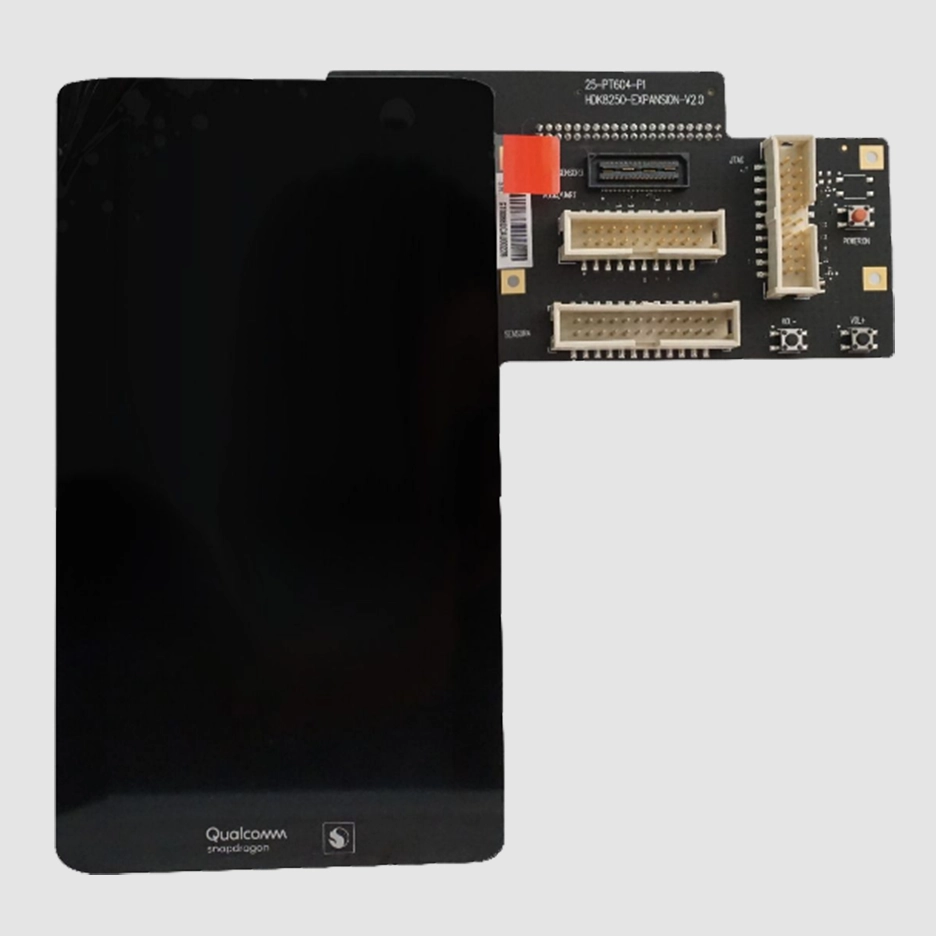

- Optional Display/Expansion board mates to DSI connectors
- HDMI 2.0 via MIPI DSI up to 4K @ 60Hz
- DisplayPort 1.4 over USB3.1 Gen 2 Type-C
Connectivity
SD : 1x microSD/UFS 2.1 Card Socket
USB : 2x USB 3.0 Type-A host via on-board hub
UART : 1x USB micro-B debug UART
PCI-E : 1x PCIe v3 2-lane to M.2 socket
JTAG : 1x JTAG
GPIO : Low speed GPIO expansion header
Networking
Wi-Fi :
- Qualcomm® Wi-Fi (QCA6391)11a/b/g/n/ac/ax 2.4/5.0 GHz
- 2×2 with MU-MIMO
Bluetooth : Bluetooth 5.1 + HS (backward compatible)
Audio
Audio :
- Qualcomm® WCD9385 audio codec on-board
- 1x Headset headphone output
- 1x loud-speaker output
- 1x Earpiece output
- 2x Analog MIC input
- 5x Digital MIC input
OS Support
Android : 10.0
Mechanical Specifications
Dimensions (W x L) : 100 mm x 85 mm
Operating Environment
Electrical Specifications
Supply voltage : 12V/5A DC Main Supply (*Power supply not part of Kit content)
Digital I/O voltage : 1.8 V
Kit Details
Documentation
eInfochips 865 Technical Datasheet Download
