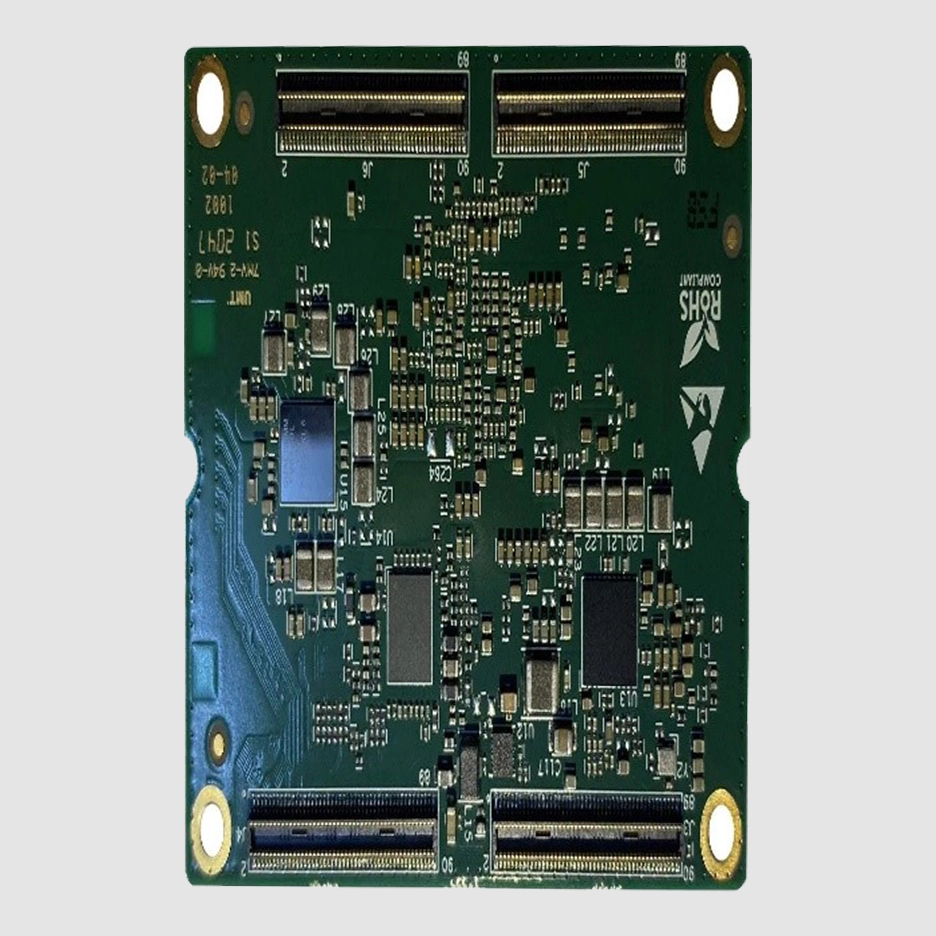

Aikri QCS610: Aikri-X10-6S-4
The Aikri 610 System on Module (SOM) is based on the Qualcomm® QCS610 processor. This SoM integrates Kryo 460 CPU, Adreno™ 612 GPU, Hexagon™ 685 DSP, AI Engine and the Spectra™ 230 camera ISP to enable advanced on-device camera processing and machine learning with very good thermal efficiency.
The Aikri 610 SoM is coupled with features like Ethernet RGMII, calibrated 802.11nac Wi-Fi signal strength, Haptics, Bluetooth 5.0 and location. It is an ideal choice to kick-start development of various applications including Enterprise security cameras, IP cameras, Dash cam and body cam, Audio/video collaboration, Home/industrial automation, Tele-diagnostics, Smart display, Video conferencing, Industrial IoT etc.
CPU
| CPU Name : Qualcomm® QCS 610 |
| CPU Type : Qualcomm® Kyro™ 460 |
| CPU Cores :
QCS610
|
Memory
| LPDDR4 : 4GB LPDDR4x |
| Flash : 16GB eMMC 5.1 |
Display
DSI :
|
Connectivity
USB :
|
| Ethernet : 1x Gigabit Ethernet (RGMII) |
| GPIO : Available on board-to-board connector |
Sensors :
|
GPS :
|
Networking
Wi-Fi :
|
| Bluetooth : Bluetooth 5.0 |
| GPS : SDR660G |
Audio
Audio :
|
Mechanical Specifications
| Dimensions (W x L) : 39mm x 58mm |
OS Support
| OS : Linux |
Electrical Specifications
| Supply voltage : 12V/5A DC Main Supply (supplied using carrier board) |
| Digital I/O voltage : 1.8 V |
Multimedia
| Graphic Controller : Adreno 608 | |
| Video Encode : QCS610: Video encode up to 4K30 | |
| Video Decode : QCS610: Video decode up to 4K30 | |
Camera Interfaces :
|
CPU
| CPU Name : | Qualcomm® QCS 610 |
| CPU Type : | Qualcomm® Kyro™ 460 |
| CPU Cores : | QCS610:
|
System On Module
Carrier Board
Mezzanine Board
Memory
| LPDDR4 : | 4GB LPDDR4x |
| Flash : | 16GB eMMC 5.1 |
Multimedia
| Graphic Controller : | Adreno 608 |
| Video Encode : | QCS610: Video encode up to 4K30 |
| Video Decode : | QCS610: Video decode up to 4K30 |
| Camera Interfaces : | 3x 4-Lane MIPI CSI camera ports with separate I2C control busses (on board-to-board connector) |
Display
| DSI : |
|
Connectivity
| USB : |
|
| Ethernet : | 1x Gigabit Ethernet (RGMII) |
| GPIO : | Available on board-to-board connector |
| Sensors : |
|
| GPS : |
|
Networking
| Wi-Fi : | Qualcomm® Wi-Fi (WCN3980) 802.11a/b/g/n/ac – 2.4/5.0 GHz, 1×1 with MIMO |
| Bluetooth : | Bluetooth 5.0 |
| GPS : | SDR660G |
Audio
| Audio : |
|
OS Support
| OS : | Linux |
Mechanical Specifications
| Dimensions (W x L) : | 39mm x 58mm |
Operating Environment
Electrical Specifications
| Supply voltage : | 12V/5A DC Main Supply (supplied using carrier board) |
| Digital I/O voltage : | 1.8 V |
Kit Details
Documentation
eInfochips QCS610 SoM Technical Datasheet Download
