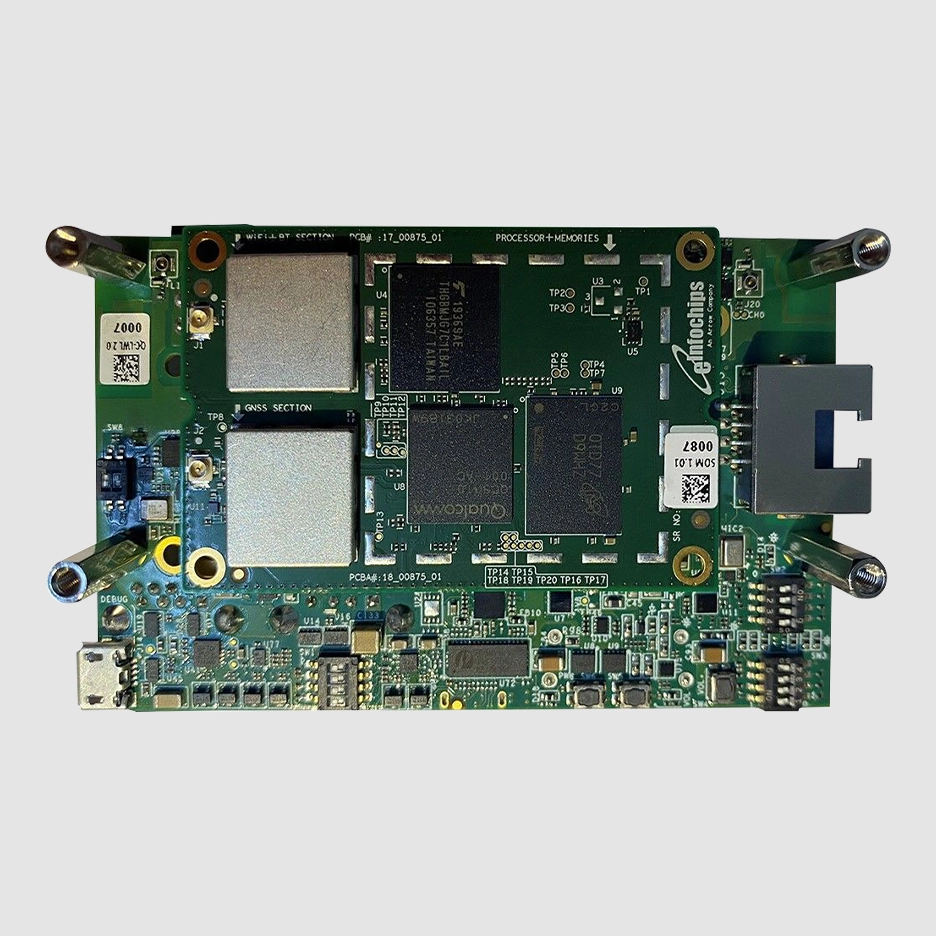

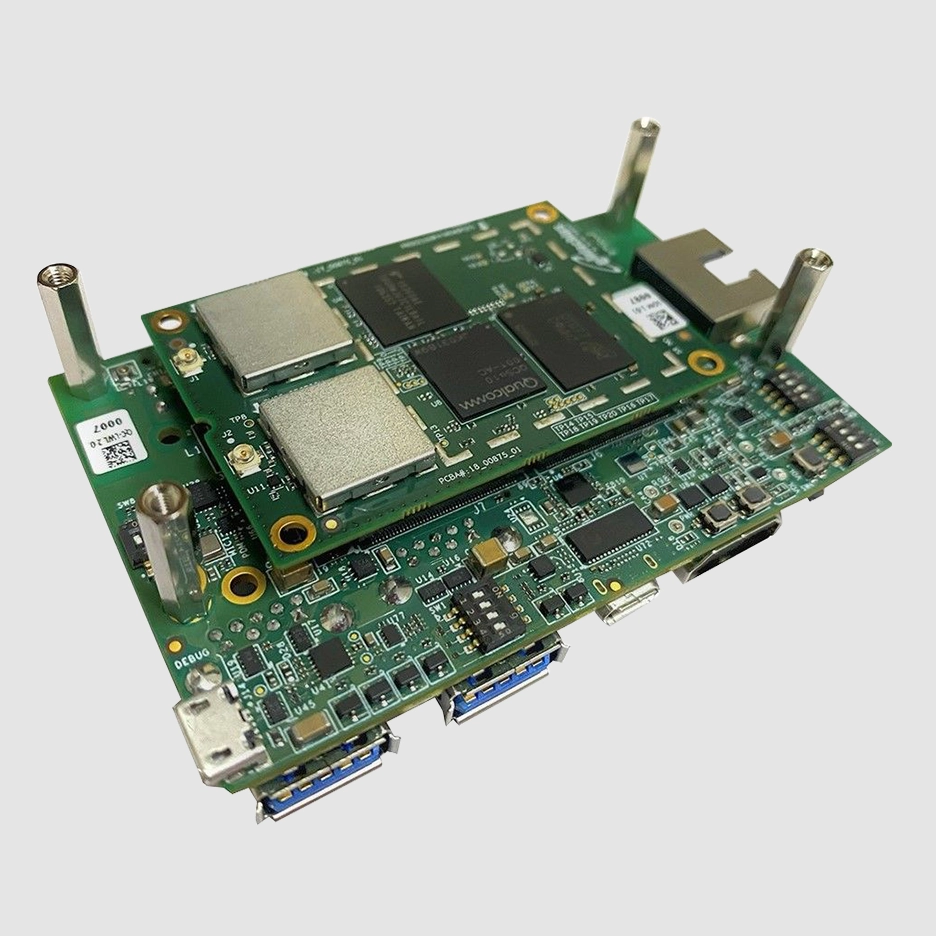

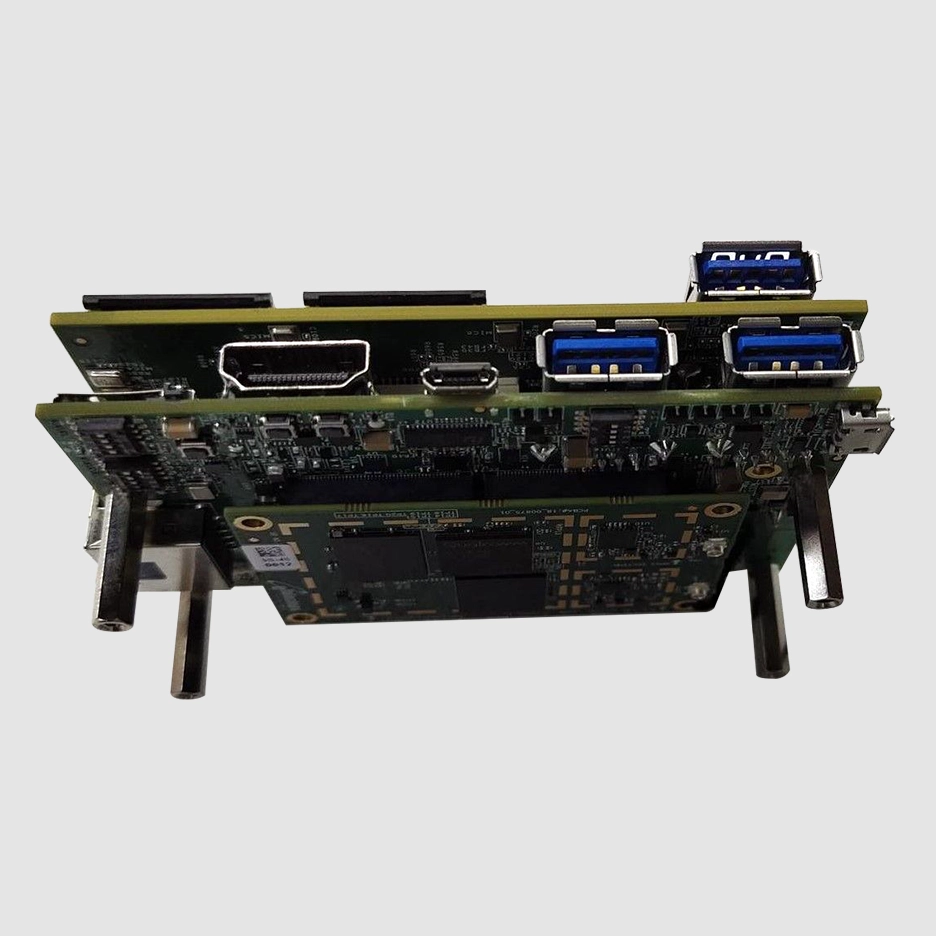

Aikri QCS610: Aikri-X10-6D-4
The Aikri 610 development kit is based on Qualcomm® QCS610-based Aikri System on Module(SoM). This SoM integrates Kryo 460 CPU, Adreno™ 612 GPU, Hexagon™ 685 DSP, AI Engine and the Spectra™ 230 camera ISP to enable advanced on-device camera processing and machine learning with very good thermal efficiency. The Aikri 610 SoM is coupled with features like Ethernet RGMII, calibrated 802.11nac Wi-Fi signal strength, Haptics, Bluetooth 5.x and location.The Aikri 610 development kit enables OEMs and engineers to evaluate performance of QCS610 for their product designs and reduce time to market. It is an ideal choice to kick-start development of various applications including Enterprise security cameras, IP cameras, Dash cam and body cam, Audio/video collaboration, Home/industrial automation, Tele-diagnostics, Smart display, Video conferencing, Industrial IoT etc.
CPU
| CPU Name : Qualcomm® QCS 610 |
| CPU Type : Qualcomm® Kryo™ 460 |
| CPU Cores : Octa-core:
|
Memory
| LPDDR4 : 4GB LPDDR4x |
| Flash : 16GB eMMC 5.1 |
Multimedia
| Graphic Controller : Adreno 608 |
| Video Encode : Video encode up to 4K30 |
| Video Decode : Video decode up to 4K30 |
Camera Interfaces :
|
Connectivity
| SD : 1x SDC 3.0 | |
USB :
| |
| Ethernet : 1x Gigabit Ethernet (RGMII) | |
| UART : 1x UART | |
| SPI : 2x SPI | |
| I2S : 2x I2S | |
| I2C : 3x I2C | |
GPS :
| |
| GPIO : Available on board-to-board connector | |
Networking
Wi-Fi :
|
| Bluetooth : Bluetooth 5.0 |
| GPS : SDR660G |
Audio
Audio :
|
Display
DSI :
|
OS Support
| OS : Linux |
Mechanical Specifications
| Carrier Board Dimensions (W x L) : 85 mm x 54 mm |
Electrical Specifications
Supply voltage :
|
| Digital I/O voltage : 1.8 V |
Kit Details
Kit Contents :
|
Documentation
Aikri QCS610 Kit Technical Datasheet Download
