AIKri QCS4290 & AIKri 42X/90AS-4

Aikri QCS4290: Aikri-42X-90AS-4

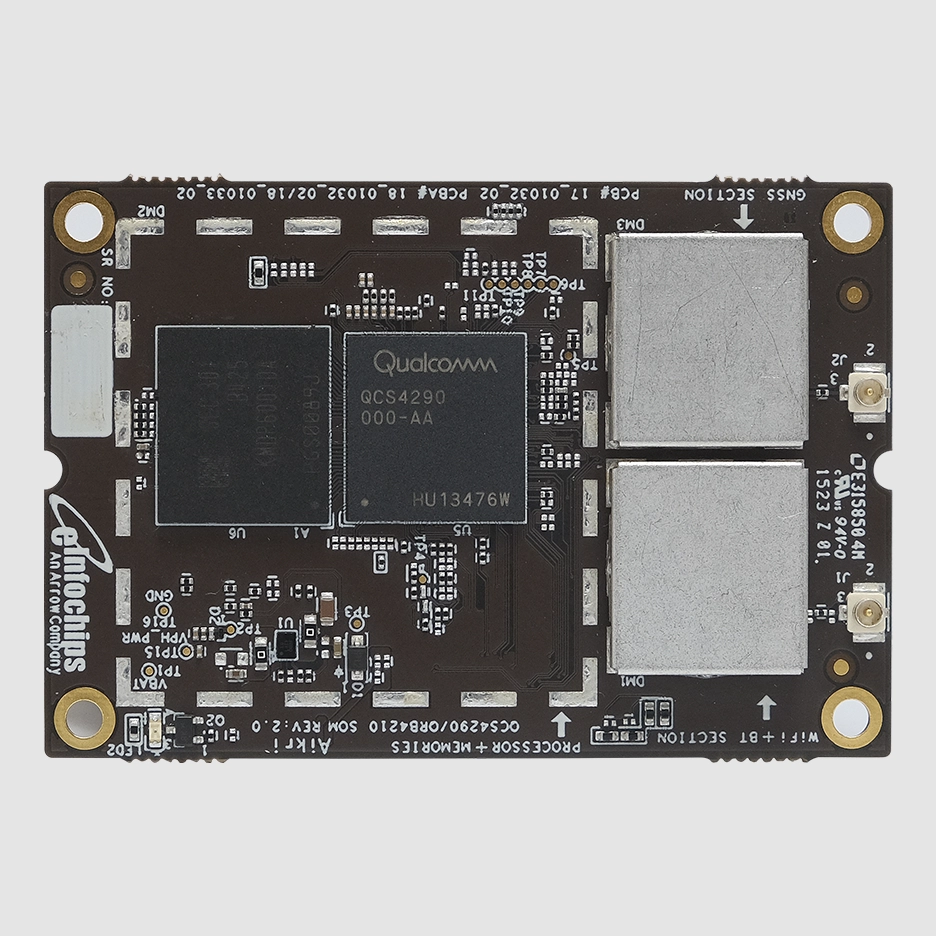

The Aikri 4290 System on Module (SoM) is based on the Qualcomm® QCS4290 processor. This SoM integrates a 64-bit Octa-Core Qualcomm® Kryo 260 application processor (Quad Gold cores operating at 2.0 GHz and Quad Silver cores at 1.8 GHz), Hexagon™ DSP, Adreno™ 610 GPU, and Spectra™ 340T image signal processor to provide a cost-effective module that delivers greater performance, improved graphics, and better-quality images . The Aikri 4290 SoM has onboard calibrated 802.11ac 1×1 Wi-Fi, Bluetooth 5.0 and location and offers secure connections. It is an ideal choice to kick-start development of various applications including Surveillance cameras, Robotics, Industrial handhelds, Telehealth and medical devices, Digital signage / HMI, Security panels etc.

Buy Now Download Datasheet

Specifications

Resources

CPU

CPU Name : Qualcomm® QCS4290

CPU Type : Qualcomm® Kyro™ 260, 64-bit ARM v-8.0 compliant application processor

CPU Cores :

Octa-core

Quad high-performance Kryo cores at 2.0 GHz – Gold cluster with 1 MB L2 cache
Quad low-power Kryo cores at 1.8 GHz – Silver cluster with 512 KB L2 cache

DSP :

Qualcomm® Hexagon™ DSP with Qualcomm Hexagon Vector eXtensions (dual HVX at 1.0 GHz)
Integrated low-power island (LPI) DSP, shared between sensors and audio

Memory

LPDDR4 : 4GB LPDDR4x

Flash : 64GB eMMC 5.1

Multimedia

Graphic Controller : Qualcomm® Adreno™ GPU 610 at 950 MHz with 64‑bit addressing
Video Encode : 1080p60 8-bit HEVC/H264
VideoDecode : 1080p60 8-bit HEVC/H264
Camera Interfaces : Qualcomm Spectra 340T ISP 3 x 4-lane CSIs (4/4/4 or 4/4/2/1 configuration) D-PHY 2.5Gbps/lane C-PHY: ~10 Gbps (3.42 Gbps/trio on three trios per port)

Display

DSI :

1 x 4-lane MIPI-DSI,
D-PHY 1.2 at 1.5 Gbps per lane, FHD+ (1080 × 2520), up to 4 hardware layers

Networking

Wi-Fi and Bluetooth :

WCN3988: WLAN 1 × 1 802.11a/b/g/n/ac and Bluetooth 5.1

Audio

Audio :

WCD9370 Audio codec
Interface support – Soundwire, I2S, SLIMbus to WCN3988 BT

OS Support

OS : Android 12, Kernel 4.19

Mechanical Specifications

Dimensions (W x L) :

58 mm x 39 mm with 4x 90-pin board to board connectors

Operating Environment

Input voltage : Input Voltage: 3.6V Nominal

Operating Temperature : -30 to +85° C

Connectivity

USB : 1 x USB 3.1

GPIO : GPIO connections to sensor core DSP

Other Interfaces :

SDIO
I2S
UART
I2C
I3C
SPI

CPU

CPU Name :	Qualcomm® QCS4290
CPU Type :	Qualcomm® Kyro™ 260, 64-bit ARM v-8.0 compliant application processor
CPU Cores :	Octa-core: Quad high-performance Kryo cores at 2.0 GHz – Gold cluster with 1 MB L2 cache Quad low-power Kryo cores at 1.8 GHz – Silver cluster with 512 KB L2 cache
DSP :	Qualcomm® Hexagon™ DSP with Qualcomm Hexagon Vector eXtensions (dual HVX at 1.0 GHz) Integrated low-power island (LPI) DSP, shared between sensors and audio

System On Module

Carrier Board

Mezzanine Board

Memory

LPDDR4 : 4GB LPDDR4x

Flash : 64GB eMMC 5.1

Multimedia

Graphic Controller : Qualcomm® Adreno™ GPU 610 at 950 MHz with 64‑bit addressing

Video Encode : 1080p60 8-bit HEVC/H264

Video Decode : 1080p60 8-bit HEVC/H264

Camera Interfaces :

Qualcomm Spectra 340T ISP

3 x 4-lane CSIs (4/4/4 or 4/4/2/1 configuration)

D-PHY 2.5Gbps/lane

C-PHY: ~10 Gbps (3.42 Gbps/trio on three trios per port)

Display

DSI :

1 x 4-lane MIPI-DSI,

D-PHY 1.2 at 1.5 Gbps per lane, FHD+ (1080 × 2520), up to 4 hardware layers

Connectivity

USB : 1 x USB 3.1

GPIO : GPIO connections to sensor core DSP

Other Interfaces :

SDIO

I2S

UART

I2C

I3C

SPI

Networking

Wi-Fi and Bluetooth : WCN3988: WLAN 1 × 1 802.11a/b/g/n/ac and Bluetooth 5.1

Audio

Audio :

WCD9370 Audio codec

Interface support – Soundwire, I2S, SLIMbus to WCN3988 BT

OS Support

OS : Android 12, Kernel 4.19

Mechanical Specifications

Dimensions (W x L) : 58 mm x 39 mm with 4x 90-pin board to board connectors

Operating Environment

Input voltage : Input Voltage: 3.6V Nominal

Operating Temperature : -30 to +85° C

Electrical Specifications

Kit Details

Documentation

eInfochips Aikri QCS4290 SoM Technical Datasheet Download

Related Products

Aikri QCS4290: Aikri-42X-90AS-4

Documentation

Note :* This is preliminary information and subject to change without notice
