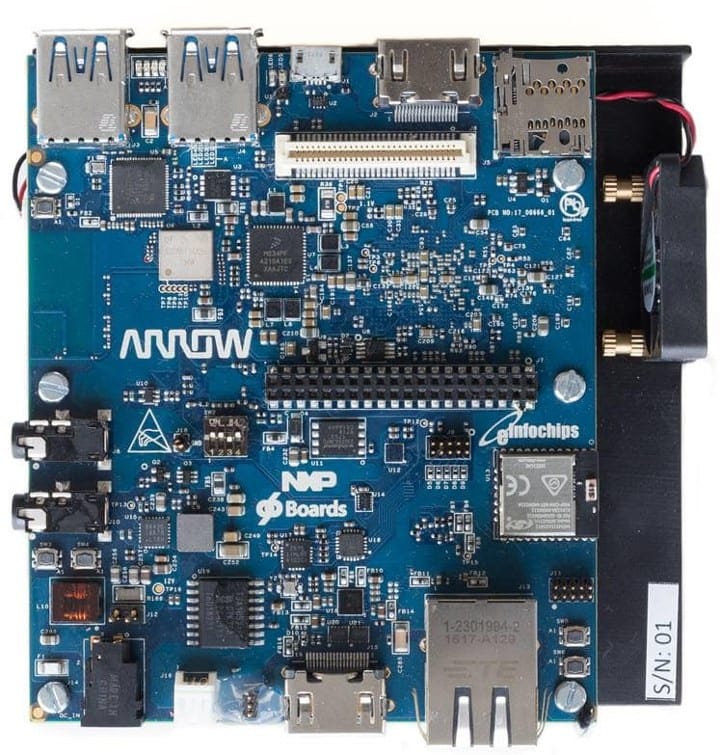

Thor96 Board

The Thor96 Board is a single-board computer, based on the 96 Board standard and powered by the NXP i.MX 8M SoC, incorporating a quad-core 64-bit Arm-A53, dedicated GPU and VPU, 4K support, Wi-Fi, Bluetooth and a wide range of I/O. Thor96 has a high-performance GPU that are capable of processing compute intensive calculation, while supporting OpenGL 1.1, 2.0, 3.0, 3.1 and Open CL1.2. The Thor96 supports low latency digital audio to multiple microphone arrays and speakers using A2B® technology by Analog Devices.

While Wi-Fi and Ethernet are now commonplace in single-board computers, the Thor96 takes the lead with the Cypress’ WICED Wi-Fi + Bluetooth combo solution which integrates IEEE 802.11a/b/g/n/ac WLAN and Bluetooth in a single-chip solution to enable small-form-factor IoT designs.

Thor96 is designed for industrial and IoT application with CANbus support, Silicon Labs based Zigbee solution & BLE both for IoT communication.

Features

  • Arm A53 Quad-Core 64-bit @ 1.5 GHz (Industrial temperature); Cortex-M4F Core @ 266MHz
  • Tensilica HiFi 4 DSP Core
  • 265 — up to 4K @ 60 fps Decode
  • 264 — up to 1080 @ 60 fps Encode
  • Micron 2GB LPDDR4 1600 MHz Industrial Temp
  • Gigabit ethernet (1x)
  • Cypress’ industry-leading 802.11ac Wi-Fi and Dual-Mode Bluetooth wireless connectivity
  • Silicon Labs MGM111 Thread / ZigBee Module
  • Interface for iMX7 based Alexa add-on module
  • Multi-channel digital audio enabled by A²B® from Analog Devices
  • Dual Display support using MIPI & HDMI
  • Analog Devices based Additional independent HDMI Output
  • CAN controller (1x)
  • USB 2.0 OTG micro AB (1x), USB 3.0 (2x)
  • uSD card socket, JTAG connector for debugging
  • 40-Pin Low-Speed Connector, 60-Pin High-Speed Connector
  • Compact Size of 85 × 100 mm

Partner Information

AVX is the premier passive supplier on these platforms and provides solutions for transient protection, decoupling and signal integrity optimization. TE Connectivity is our comprehensive connector solution provider for these platforms as well.

Applications

  • Advanced Industrial and consumer HMI
  • Building Automation
  • Automotive Infotainment, heads-up display, instrument cluster, Cabin Electronics
  • Robotics & Drones
  • Wireless Monitoring
  • Visual Machine Learning
  • Home Cinema & Advertisement Billboards
